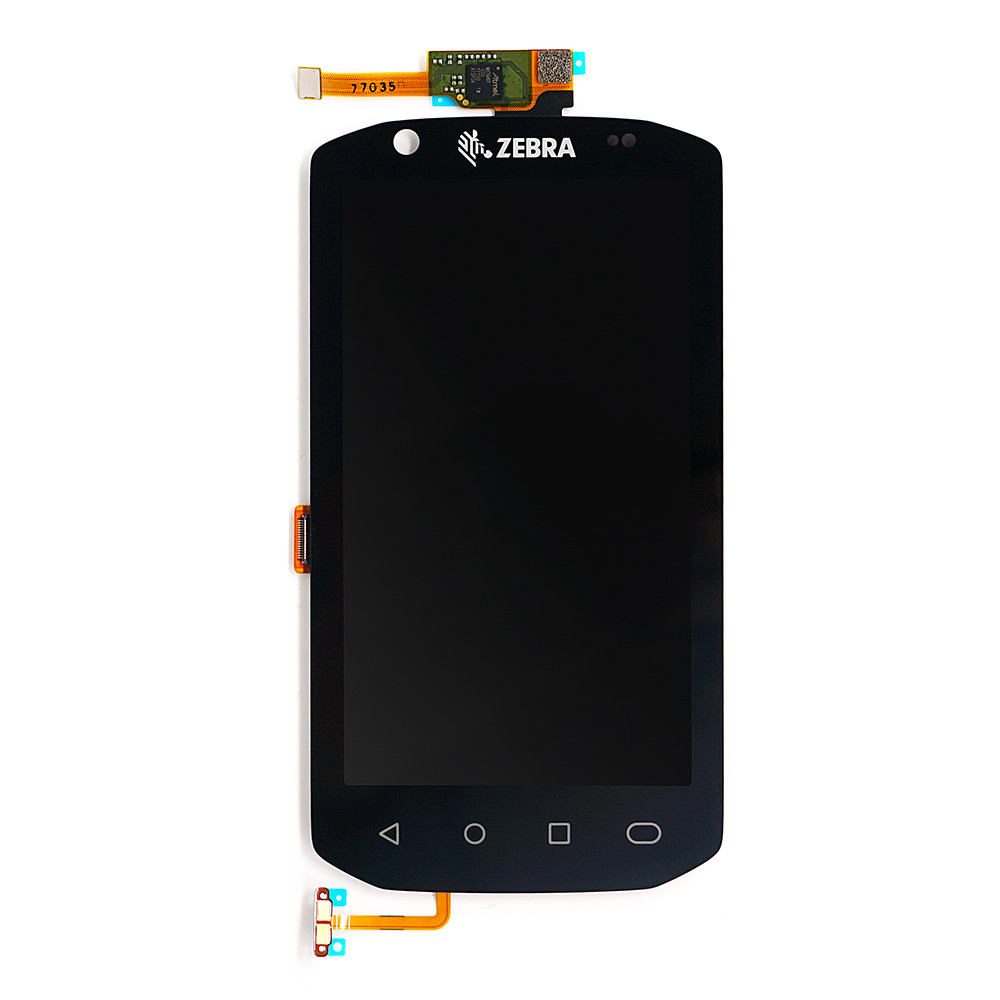

LCD With Touch Digitizer For ZEBRA TC77 TC77HL KS-3 Version

Minimum Order Quantity : 1 Price : USD57/PC
Packaging Details : 1PC per PP Bag Delivery Time : 1-5DAYS
Payment Terms : PAYPAL , T/T Supply Ability : 2000PC PER MONTH
Place of Origin: China Brand Name: Zebra
Model Number: TC77

Detail Information

Highlight:

lcd touch digitizer

,

zebra tc77hl screen replacement

,

ZEBRA TC77HL

Product Description

The LCD with Touch Digitizer for the Zebra TC77/TC77HL is a robust display module designed for industrial and enterprise-grade mobile devices. Below is detailed production-related information:


1. General Overview

The component combines an LCD display and a capacitive touch digitizer. It is designed specifically for the Zebra TC77 and TC77HL rugged mobile computers, widely used in logistics, field service, warehousing, and retail.


2. Key Technical Specifications

  • Display Type: TFT (Thin Film Transistor) LCD.
  • Touch Panel: Capacitive multi-touch digitizer.
  • Size: 4.7 inches (diagonal).
  • Resolution: HD (1280x720 pixels), ensuring clear visuals for detailed information display.
  • Brightness: High-nit brightness (approx. 400-700 nits), suitable for outdoor and indoor environments.
  • Aspect Ratio: Standard 16:9 ratio.
  • Durability:
    • Scratch-resistant display, typically utilizing Gorilla Glass or a similar toughened glass.
    • Shock and vibration resistance aligned with MIL-STD-810G or equivalent standards.

3. Materials Used

  • LCD Panel: TFT-based for sharp imagery and high color fidelity.
  • Touch Digitizer: Transparent conductive material (e.g., indium tin oxide) laminated with chemically strengthened glass.
  • Protective Coating: Anti-glare and anti-smudge coating to enhance usability in various environments.
  • Backlight: LED backlighting for consistent illumination and energy efficiency.

4. Production Process

  1. LCD Panel Manufacturing:
    • Thin-film transistors are applied to create a grid for precise pixel control.
    • High-resolution HD panel is fabricated with optimized color and brightness levels.
  2. Touch Screen Integration:
    • Capacitive sensors are embedded within the digitizer layer.
    • Digitizer is laminated onto the LCD to create a single, cohesive unit.
  3. Quality Testing:
    • Rigorous drop tests, vibration tests, and environmental stress tests (heat, cold, and humidity) ensure compliance with industrial-grade performance standards.
    • Functional tests for touch accuracy, visual clarity, and responsiveness.

5. Applications

  • Industrial Use: For scanning, data entry, and navigation in field operations.
  • Replacement Part: Provides a high-quality solution for repair and refurbishment of damaged Zebra TC77 screens.
  • Outdoor Readability: Engineered for clear visibility under direct sunlight.

6. Environmental Specifications

  • Operating Temperature: -20°C to 50°C (-4°F to 122°F).
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F).
  • Resistance: Designed to resist moisture, dust, and impact in line with IP65/IP67 ruggedness ratings.



If you need sourcing details, pricing information, or guidance on installation, let me know!
